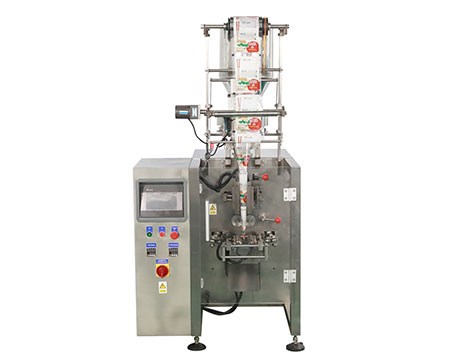

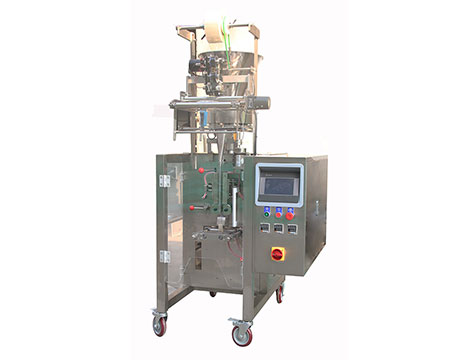

The vertical pepper powder packing machine adopts man-machine dialogue, which can conveniently and accurately adjust the bag size and packaging speed. The cutter also has a flat knife, sawtooth knife, fillet knife, and so on. Our pepper powder packing machine can also be equipped with a seal knife which can meet the function of easy tearing opening for convenient bag opening. You can find the existence of our chilli packing machine widely used in food, medicine, and chemical industries, such as the ketchup, syrup, and other highly viscous materials.
| Machine Model | GN-LB-G300 |
| Seal Type | Flat / Teeth / Round seal etc. |
| Volume Measure Type | Piston |
| Power Supply | 220Vac 50Hz |
| Power | 2.5KW |
| Air Compressure | 0.5-0.6 Bar |
| Bag Size | 30-150mm(Width), 30-165mm(Length) |
| Machine Dimension | L1100 × W850 × H1800mm |
| No. | Name | Brand |
| 1 | PLC | XINJIE CHINA |
| 2 | Touch Screen | XINJIE CHINA |
| 3 | Proximity Switch | YANG MING TAIWAN |
| 4 | Motor | TAIBAN TAIWAN |
| 5 | Thermocouple | SHANGHAI |
| 6 | Inverter | XINJIE CHINA |
| 7 | Solid-state Relay | YANG MING TAIWAN |
| 8 | Motor | SUOENG CHINA |
| 9 | Contactor | SCHNEIDER，FRANCE |
| 10 | DC Power Supply | MINGWEI TAIWAN |
This pepper vertical powder packing machine adopts PLC, touch screen, inverter, and DC switching power supply, which is reliable and simple to operate;
The system of our pepper packing machine is equipped with color mark tracking and digital input of sealing and cutting position to make the sealing and cutting position more accurate;
You can find the existence of this form fill seal packaging machine widely in the packaging of various bagged seasoning sauces, ketchup and other highly viscous materials;
Automatically complete the functions of bag making, adjustable measurement, filling, date printing, sealing, cutting and counting.
