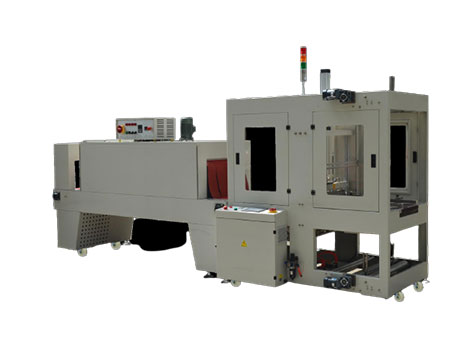

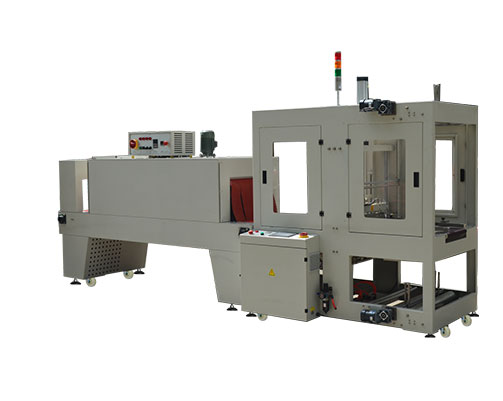

This semi-auto sealer series has a compact structure and small footprint. We can press the start button after the products are fed by hand. Then the products will be sealed and shrank automatically. Therefore the speed of packing is based on the speed of our feeding by man. The semi-automatic sleeve sealer is suitable for packaging cartons, beer, beverages, cosmetics, condiments, etc, which we don't need to link with the automatic product feeding line.
| Machine Model | GNL-6030Z（Sleeve Sealer） | GNS-6040(Shrink Tunnel) |
| Packaging/Cavity Size | 700mm | L1800×W600×H400mm |
| Packaging Speed | 0-15 bpm | 0-15 bpm |
| Power Supply | 3Ф 380Vac 50Hz | 3Ф 380Vac 50Hz |
| Power | 3KW | 24KW |
| Max Current | 10A | 35A |
| Air Pressure | 6kg/cm3 | No need |
| Suitable Film | PE(0.035-0.18mm thickness) | PE(0.035-0.19mm thickness) |
| Net Weight | 450kg | 500kg |
| Dimension | L1650 X W920 X H1850mm | L2800 X W900 X H1700mm |
| No. | Name | Brand |
| 1 | PLC | OMRON, JAPAN |
| 2 | Touch Screen | MCGS |
| 3 | Button switch | SIEMENS GERMAN |
| 4 | Temperature Controller | AUTONICS SOUTH KOREA |
| 5 | Ac Contactor | SCHNEIDER，FRANCE |
| 6 | Surveyor Inverter | SCHNEIDER，FRANCE |
| 7 | Solid-state Relay | AOLE TAIWAN |
| 8 | Motor | LIANGJI（TAIWAN, CHINA） |
| 9 | Relay Switch | SCHNEIDER，FRANCE |
| 10 | Power Supply | SCHNEIDER，FRANCE |
