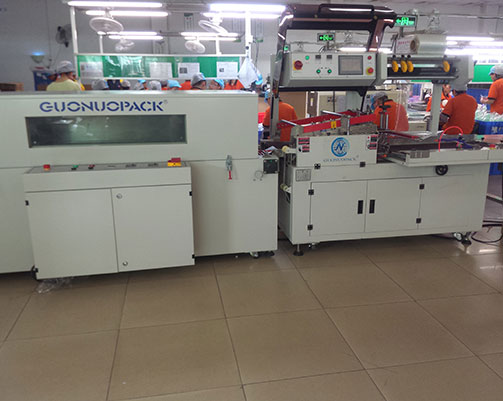

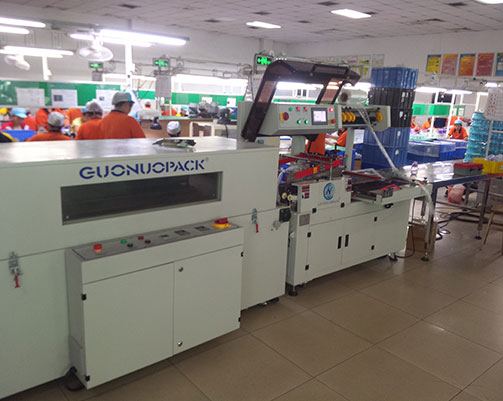

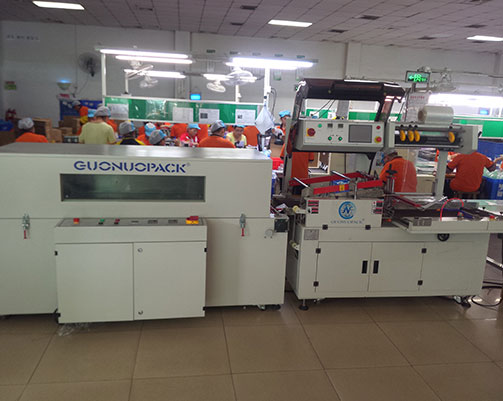

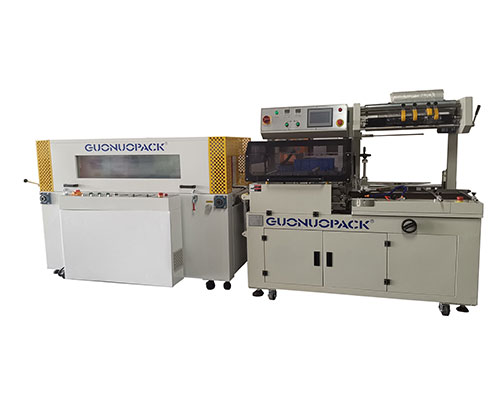

GNL4535+ GNS5030LW is a fully automatic and unmanned L-bar heat sealer, which is widely used in the flow operation of mass production and packaging. This Bopp sealing machine series has high working efficiency. The automatic film feeding and punching device, the manually adjusted film guide system, and the manually adjusted feeding and conveying platform are suitable for products of different widths and heights. The bs-400la model also has the function of tight connection, which is specially designed for small packaging products. When the size of packaging changes, the adjustment is very simple. There is no need to change the mold and bag maker for this Bopp L-bar shrink wrap machine series.
| Machine Model | GNL-4535（L Sealer） | GNS5030LW(Shrink Tunnel) |
| Packaging Size | L+H≤400，W＋H≤380 H≤100mm | L1500 X W500 X H300mm（Cavity Size) |
| Packaging Speed | 10-20 bpm（according to the size of product） | |
| Power Supply | 3Ф220V/380V 50/60Hz | |
| Power | 3KW | 13KW |
| Max Current | 10A | / |
| Net Weight | 210kg | 350kg |
| Dimension | L1700 X W820 X H1580mm | L1800 X W990 X H1300mm |
The wrapping film is neat, firm and without wrinkles, which provides additional value to your goods and your business by way of creating a positive first impression. For more details, please feel free to contact us!
| No. | Name | Qty | Brand |
| 1 | PLC | 1 | OMRON, JAPAN |
| 2 | Touch Screen | 1 | MCGS |
| 3 | Circuit Breaker | 10 | SCHNEIDER, FRANCE |
| 4 | Temperature Controller | 3 | OMRON, JAPAN |
| 5 | Ac Contactor | 2 | SCHNEIDER，FRANCE |
| 6 | Material Induction Switch | 2 | BONNER, USA |
| 7 | Solid-state Relay | 3 | OMRON, JAPAN |
| 8 | Air Cylinder | 1 | SHAKO（TAIWAN, CHINA） |
| 9 | Cylinder Solenoid Valve | 1 | SHAKO（TAIWAN, CHINA） |
| 10 | Air Filter | 1 | SHAKO（ TAIWAN, CHINA ） |
| 11 | Proximity Switch | 4 | SICK, GERMAN |
| 12 | Conveyor Belt | 3 | SIGLIN,GERMEN |
| 13 | Power Switch | 1 | TIANYI,CHINA |
The sealing knife of this automatic L-sealer machine adopts DuPont Teflon coated anti-adhesion and high-temperature resistant aluminum alloy knife, which will not crack and produce zero pollution.
According to different products, this Bopp sealing machine is equipped with imported photoelectric detection and one group of horizontal and vertical detection, which is convenient for switching and selection. For thin and small packages, it is also easy for this L-sealer for sale to complete the sealing and packaging operation.
Automatic feeding and the length can also be adjusted automatically through the combination of electric eye and timer. Equipped with induction motor to automatically take up waste.
The original "Omron" digital display temperature controller with a built-in PID function is adopted, and the knife sealing temperature is extremely sensitive and accurate, which can be set at will. There is no need to worry about the inaccurate temperature damaging the product. The sealing knife of our Bopp L-type seal and shrink packaging machine has an automatic protection function to effectively prevent accidental cutting of packaging and has an automatic alarm function to greatly improve the safety of the operator.
The whole set of Bopp sealing machine truly realizes the unmanned operation connected with the production line. The specially designed film up and down synchronization mechanism corrects the deviation of the film.
It is often used BOPP film to seal and shrink the product packaging. The appearance of the packing is beautiful.
