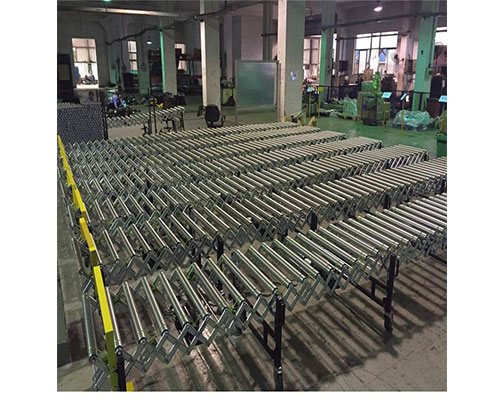

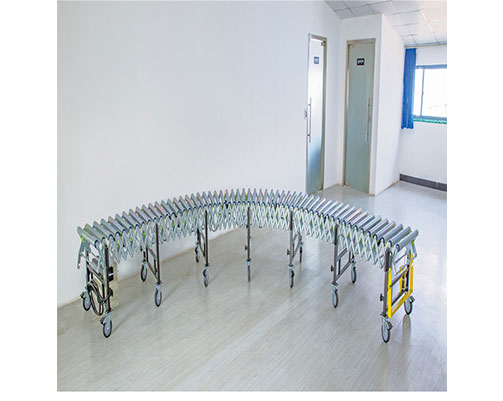

The machine body of our flexible expandable roller conveyor can change the direction freely, flexibly change the conveying direction and arbitrarily change the angle. The maximum turning angle can reach 180 degrees. The height of the support leg can be adjusted. The bottom is equipped with a universal wheel with a brake, which can be moved conveniently. Our flexible expandable conveyors can form straight-line sections, S-section, and arc sections as required.
| Name | Telescopic Roller Surveyor |
| Motion Load | 30-60 kg/m |
| Static Load | 60 kg/m |
| Length of Roller | 600/800mm |
| Diameter of Roller | 50mm |
| Roller Shaft Diameter | 12mm |
| Roller Wall Thickness | 1.5mm |
| Heitht of the Working Surface | |
| Power Supply | 220Vac/380Vac |
| Thickness of Expansion Piece | ≥3.5mm |
| Expansion Piece Material | Carbon Steel Galvanized |
Free expansion and contraction without occupying more space. The storage of our adjustable height roller conveyor does not occupy too much space, and the length can be adjusted according to the equipment installation site. The layout is flexible and easy to use.

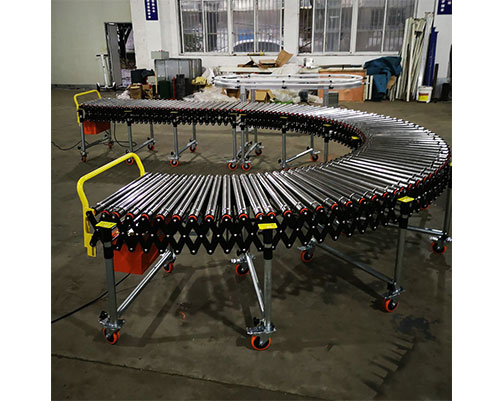

Flexible turning and 360 degree rotation. This adjustable roller conveyor line can rotate 360 degrees and turn flexibly. It can be used in various irregular sites, and the transportation is smooth without deviation.
Adjustable height for easy unloading. The height of the working surface can be adjusted, and the movable conveyor is suitable for indoor and outdoor loading and unloading.

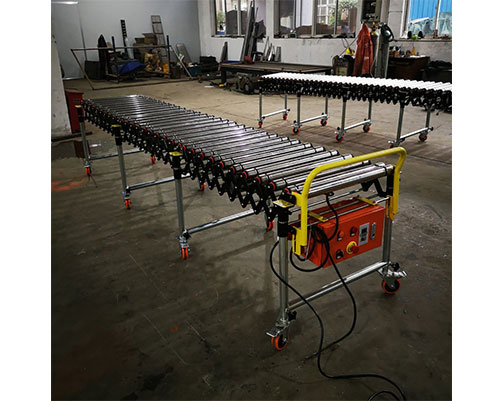

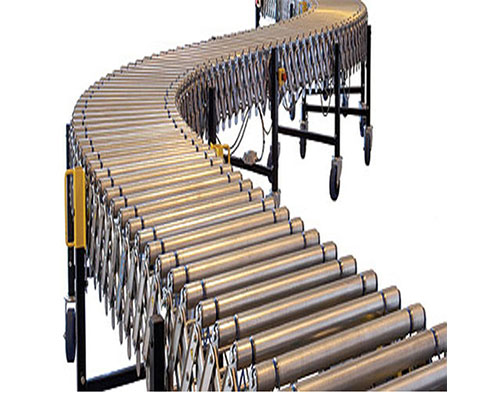

The flexible expandable conveyors can be divided into power drum conveying line and unpowered drum conveying line according to whether it needs to be driven or not.
You can find this packaging machine for sale applicable to express delivery, logistics, transportation, wholesale market, workshop, etc.
Guonuo can also customize the conveyor roller machine according to the client's requirements.
