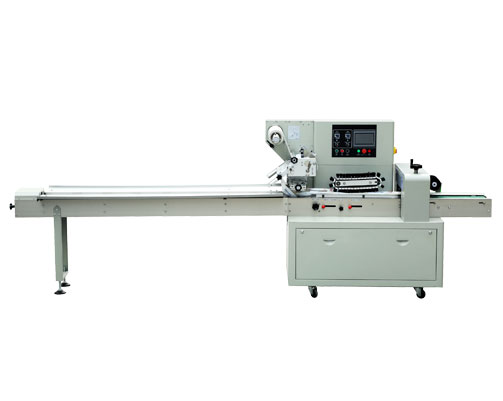

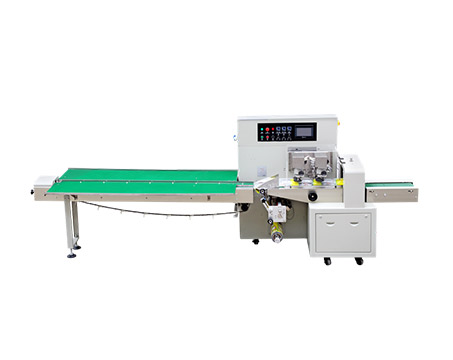

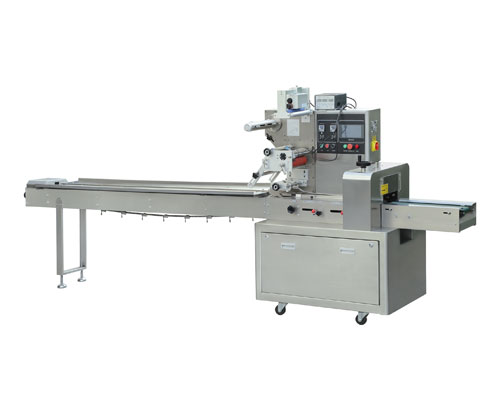

Horizontal FFS Cookie Wrapping Machine

Guonuo's horizontal FFS cookie wrapping machine is controlled by an inverter. It is very suitable for packing biscuits, candy, instant noodles, bakery, cookies, chocolates, and the candy-confectionery industry.

GUONUOPACK

Horizontal FFS Cookie Wrapping&Filling Machine Technical Parameters


Machine ModelGN-ZB-320D
Film WidthMax 350mm
Bag Length65-190 / 90-220 / 120-280/ 150-330 mm
Bag Width50-160mm
Product HeightMax 45mm / 60mm
Film Roll DiameterMax 320mm
Packing Speed40-230bpm
Power Supply220Vac  56/60Hz  2.4KW
Machine DimensionL3770 × W670 × H1450mm
Gross Weight500Kg
Remarks: The packaging film can be connected under the normal working state of the machine, saving time and high efficiency


Video of Horizontal FFS Cookie Wrapping Machine

Automation in packaging is increasingly important to meet rising production demands. Learn more about our high speed horizontal flow wrapper!

Horizontal FFS Cookie Wrapping Machine Main Parts Configuration

Main Parts Configuration  (In case of replacement, the same grade shall prevail)
No.ComponentsBrand
1PLCPANASONIC JAPAN
2InverterPANASONIC JAPAN / SHIHLIN TAIWAN
3Touch ScreenXINJIE/MCGS CHINA
4Temperature ControllerALSET CHINA
5PhotocellALSET CHINA
6EncoderRONGDE CHINA
7Two Position SwitchGLELE CHINA
8Proximity SwitchENVK TAIWAN
9PowerMINGWEI TAIWAN
10Solid State RelaySCHNEIDER GERMANY
11Intermediate RelayOMRON JAPAN


Horizontal FFS Cookie Wrapping Machine Features

01

This cookie horizontal form fill seal machine is ideal for small-scale production with a compact design, takes up litter space.

02

Man machine interface, convenient and fast parameter setting.

03

Similar to the fruit packing equipment, our cookie packaging equipment also has a self-diagnosis function to display mechanical faults in time.

04

The cantilever design structure of our biscuit packing machine can facilitate the cleaning and maintenance of the machine at ordinary times.

05

Temperature independent PID control, better suitable for all kinds of packaging materials.

06

With reel automatic centering fastening mechanism and reel braking system top frame.

07

Three rollers are used for film pulling and transverse sealing

08

Guonuo's biscuit packaging machine has a simple mechanical transmission system is simple, which is more reliable and convenient.
