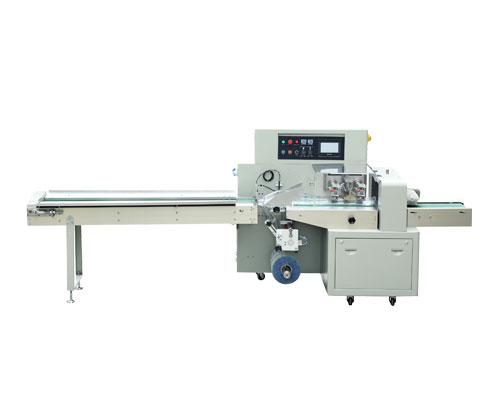

Horizontal form fill seal fruit packaging machine has the same functions and ease of use as high-performance models. Because of its high-cost performance, our fruit packing equipment for sale can provide the most suitable packaging options for start-up companies. It is mainly used for packing all kinds of regular shape objects such as single fruit or tray.
| Machine Model | GN-ZB-250B |
| Film Width | Max 240mm |
| Bag Length（Double Knives） | 65-190mm |
| Bag Length（Single Knive） | 120-280 |
| Bag Width | 30-110mm |
| Product Height | Max 45mm |
| Film Roll Diameter | Max 320mm |
| Packing Speed | 40-230bpm |
| Power Supply | 220Vac 56/60Hz 2.4KW |
| Machine Dimension | L3760 × W670 × H1510mm |
| Gross Weight | 550Kg |
| Remarks: The packaging film can be connected under the normal working state of the machine, saving time and high efficiency | |
The packaging of fruits has always been a problem. How can we preserve the fruits for a longer time?
Fruit packing equipment offers you the answer. Check out this video to learn more!

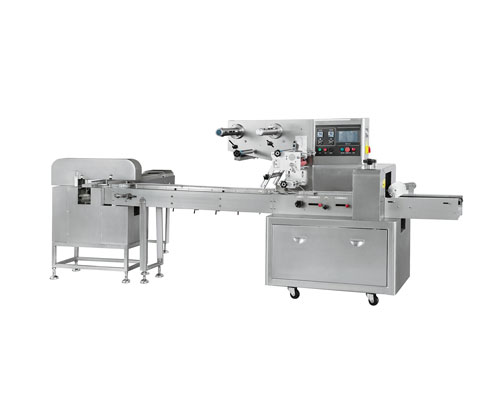

High speed fruit or vegetable pillow packaging machine is compatible with different forms of composite packaging materials. Double servo control is adopted, and the bag length is set and cut immediately. When changing different varieties, it does not need to be adjusted many times. It is in place in one step, saving time and film. The operation of the whole machine is simple and perfect. It is a perfect solution for the food and packaging industry to improve production efficiency, reduce labor intensity and improve packaging grade. It adopts imported PLC control, servo motor drive, Chinese man-machine interface, LCD touch screen parameter setting and input. Manual feeding, automatic conveying and sealing mode, driven by servo system, fast packaging speed, low failure rate and simple maintenance. It is mainly suitable for packing all kinds of irregular articles, sticky articles and solid objects.
| Main Parts Configuration (In case of replacement, the same grade shall prevail) | ||
| No. | Components | Brand |
| 1 | PLC | PANASONIC JAPAN |
| 2 | Inverter | PANASONIC JAPAN / SHIHLIN TAIWAN |
| 3 | Touch Screen | XINJIE/MCGS CHINA |
| 4 | Temperature Controller | ALSET CHINA |
| 5 | Photocell | ALSET CHINA |
| 6 | Encoder | RONGDE CHINA |
| 7 | Two Position Switch | GLELE CHINA |
| 8 | Proximity Switch | ENVK TAIWAN |
| 9 | Power | MINGWEI TAIWAN |
| 10 | Solid State Relay | SCHNEIDER GERMANY |
| 11 | Intermediate Relay | OMRON JAPAN |
Double motors, double frequency converters and PLC control. The bag length of our fruit packing machine for sale is set and cut immediately. There is no need to adjust the empty walk, one step in place, saving time and film.
Man machine interface, convenient and fast parameter setting.
Having a fault self-diagnosis function, our vertical fruit packaging machine is able to display mechanical faults at a glance.

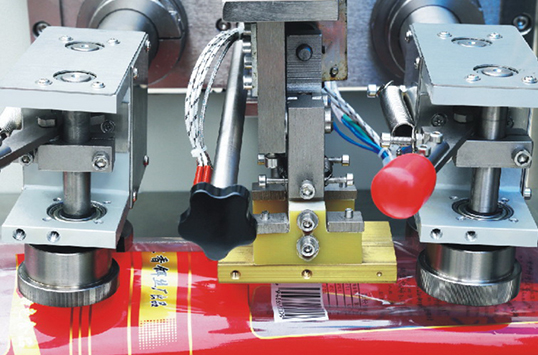

High sensitive photoelectric eye tracks with standard and digitally inputs the sealing and cutting position to make the sealing and cutting position more accurate.
Temperature independent PID control, better suitable for all kinds of packaging materials.
Positioning stop function, no sticking knife, no waste of coating.
The mechanical transmission system of our fruit packing equipment for sale is simple, which is more reliable and more convenient.
All controls are realized by software, which is convenient for function adjustment and technical upgrading, and will never lag behind.
