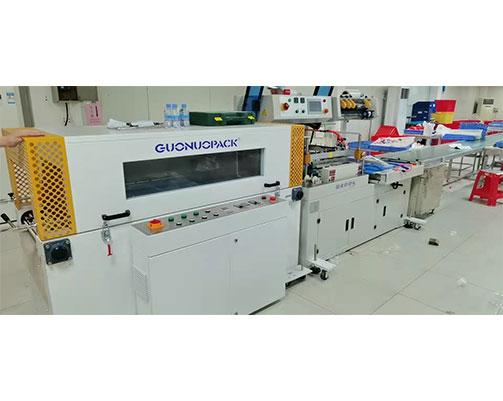

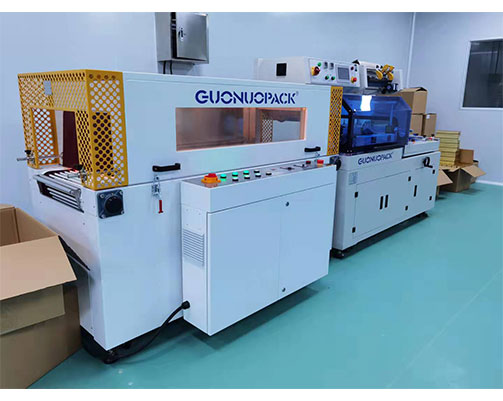

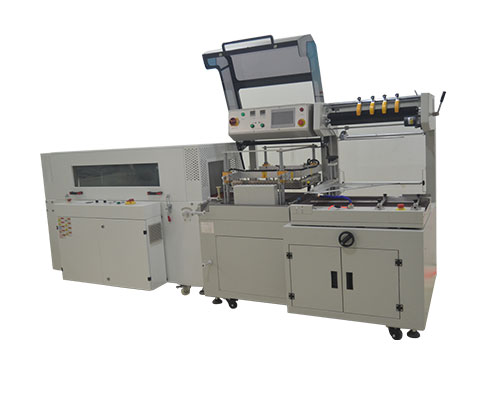

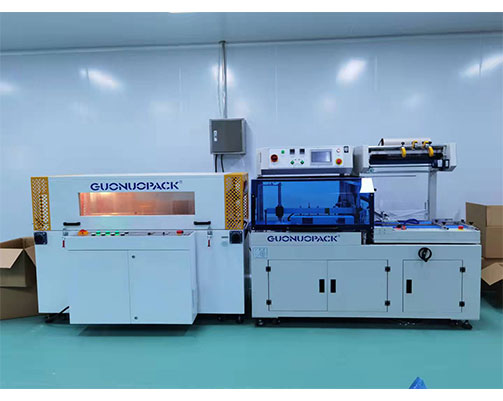

This full-automatic L-type vertical PE film shrink wrapping machine is a full-automatic shrinkage packaging machine with a high degree of automation, which can automatically complete the steps of feeding, film covering, sealing, and cutting, shrinkage, and so on. Its work efficiency is high, and the output per minute can reach 20-35 pieces. This vertical shrink wrap machine series is suitable for the thermal shrinkage of POF and BOPP films, and the packaging effect is not wrinkled. The shrink packaging machine is appropriate for batch production packaging lines, especially for products with higher and larger sizes. You can find the existence of this PE film wrapping machine series widely in printing, color boxes, greeting cards, photo albums, photo frames, medicine, electronics, daily chemicals, cosmetics, auto parts, hardware, food and other industries.
| Machine Model | GNL-5545D（Vertical L Sealer） | GNS-5030LW(Shrink Tunnel) |
| Packaging Size | L＋H＜500mm W＋H＜400mm H＜150mm | L1500×W500×H300mm |
| Packaging Speed | 0-40 bpm（according to product size） | |
| Height of Table | 820mm±50mm | |
| Suitable Film | POF/PE Shrink Film | |
| Power Supply | 220Vac 50Hz | 380Vac 50Hz |
| Power | 3KW | 13KW |
| Max Current | 10A | / |
| Air Pressure | 6kg/cm3 | / |
| Net Weight | 400kg | 350kg |
| Dimension | L1850 X W1400 X H1300mm | L1800×W990×H1300mm |
| No. | Name | Qty | Brand |
| 1 | PLC | 1 | OMRON, JAPAN |
| 2 | Touch Screen | 1 | MCGS |
| 3 | Circuit Breaker | 10 | SCHNEIDER, FRANCE |
| 4 | Temperature Controller | 3 | OMRON, JAPAN |
| 5 | Ac Contactor | 2 | SCHNEIDER，FRANCE |
| 6 | Material Induction Switch | 4 | BONNER, USA |
| 7 | Motor | 5 | MAILI, CHINA |
| 8 | Solid-state Relay | 3 | OMRON, JAPAN |
| 9 | Air Cylinder | 1 | SHAKO（TAIWAN, CHINA） |
| 10 | Cylinder Solenoid Valve | 1 | SHAKO（TAIWAN, CHINA） |
| 11 | Air Filter | 1 | SHAKO（ TAIWAN, CHINA ） |
| 12 | Proximity Switch | 4 | SICK, GERMAN |
| 13 | Conveyor Belt | 3 | SIGLIN,GERMEN |
| 14 | Power Switch | 1 | TIANYI,CHINA |
The waste shrink film is automatic recycled by a separate motor, which will not crack due to too loose or too tight, and the waste shrink film is easy to disassemble.
The product conveying of this vertical L sealer adopts solid steel rod wrapped with an imported silicone hose, which is durable.
The sealing part is driven vertically up and down, and the sealing contact surface is uniform. The vertical drive can overcome the problems of wrinkle and sealing line not in the middle of the product in the traditional "L" automatic sealing and cutting packaging machine, and achieve excellent sealing effect.
Our vertical shrink wrap machine adopts advanced PLC programmable controller, with safety protection and alarm device, and the sealing and cutting system is reliable. The maintenance and operation are very simple.
The feeding length of this L-type sealer machine is controlled simultaneously by the combination of electric sensor to accurately control the length of shrink film.
Install two sets of horizontal and vertical electric sensor to facilitate switching and selection. Even for thin or small packages, sealing and packaging can be easily completed.
For products with different packaging heights, the lifting and lowering of the sealing knife is driven by the motor, which can be adjusted by the position of electrical sensor.
GNS-5030LW PE film wrapping machine adopts an imported double air survey motor, so that the hot air in the furnace cavity is evenly distributed, and the effect after shrinkage is more beautiful.
The inverter controls the transmission speed and stepless speed regulation.
The super large air volume cooling system can quickly cool and finalize the shape of the product after heat shrinkage. The aluminum workbench can be selected at the rear end.
This vertical PE film shrink wrapping machine is suitable for sealing, cutting and shrinking packaging of tea gift bags, frequency converters, TP-Link, computers and other medium-sized objects.
